RV Camera Radar Buzzer Fusion

Best backup reverse camera with radar detector proximity sensor and buzzer fusion, mainly to solve BSD via visional camera and radar distance,releasing sound ang light buzzer alarm when detect dangous for commercial vehicle truck,forklift,RV,heavy duty,semi truck etc.

  • Brand:

    DUUHNN
  • Item NO.:

    DH-RC10
  • Order(MOQ):

    1pcs
  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay
  • Price:

  • Warranty:

    2Years
  • Delivery Time:

    3-5 working days for sample

Why design this camera radar buzzer fusion?


To solve the road safety and reduce the risk for commercial vehicles, usually the fleet management operators or vehicle owners install the back up camera,parking assitant sensor to solve the BSD issue. Sometimes the big truck, long RV, and wide AG etc face "when turning left or right,reversing back,going through tunnel or limit heigh road, the driver hard to identify the distance whether go ahead safely. If not,pre-early alarm us to avoid risk." Most radar sensors are fixed,apart from camera and buzzer. Can we design one fusion of camera radar buzzer which is also easy DIY installation?


Hightlights of the Reverse Camera with Radar and Buzzer Sensors

* AHD 720P backup camera waterproof IP68 and shockproof for vehicles;

* Parking Sensor Backup Camera Combo with sound and light beeper inside;

* Visional camera and radar distance showed in monitor for driving assitance;

* Cigarette lighter power to control sound on/off;

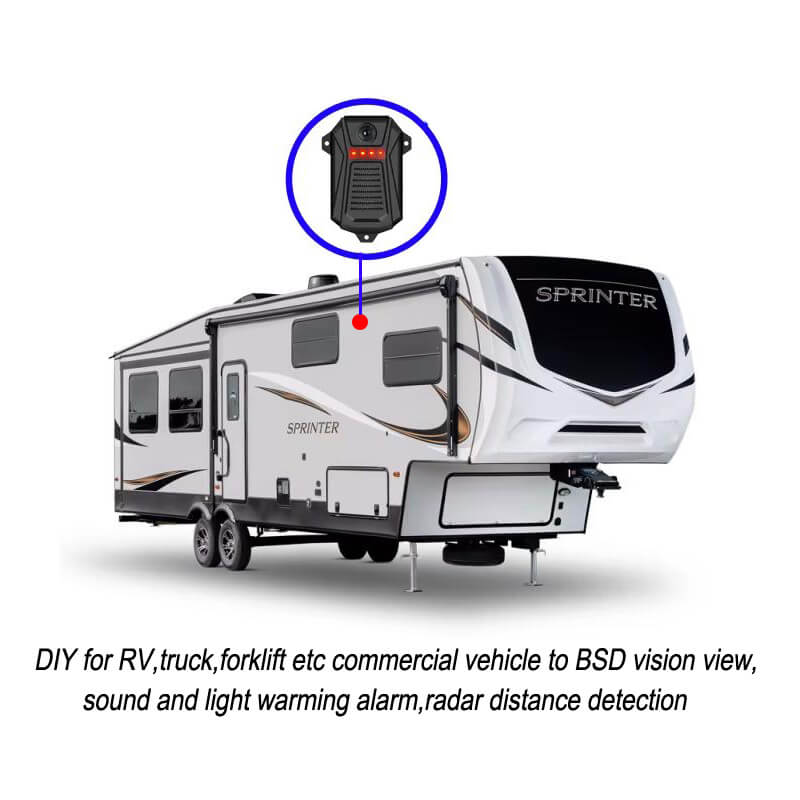

* Strong magnetic chuck to vehicle, easy DIY for backup,side view or road facing installation;


Product Technical Parameter

backup camera parameter

Image sensors
1/2.7" CMOS
Video format
NTSC, PAL
Camera Resolution
1280x 720
Frame Rate
25/30fps
Video output signal
AHD
Exposure
Auto
Gain
Auto
White balance
Auto
Low light levels
0.5 Lux
Image characteristics
Original/Mirror
Rated working voltage
5V DC
Rated operating current
150mA +/- 10mA
Image quality assurance temperature
-30 to 75
Optimum working temperature
-20 to 65
Storage temperature
-30 to 75
Ambient humidity
90% RH
Noise reduction methods
3D noise reduction


Packing Sensor Radar Parameter

Frequency
9.9~10.5GHz
Distance resolution
0.01m
Distance measuring accuracy
Better than 0.1m
Detection distance
3m
Horizontal angle
120°
Vertical angle
70°
External dimensions
17cm*8.5cm
Weight
200g
Interface definitions
Standard in-car camera aerial head definition interface
Speaker power
5w
Flashing light power
4 x 0.25W red LEDs
Strong magnetic suction cup parameters
16KG downward pull


How to wiring?

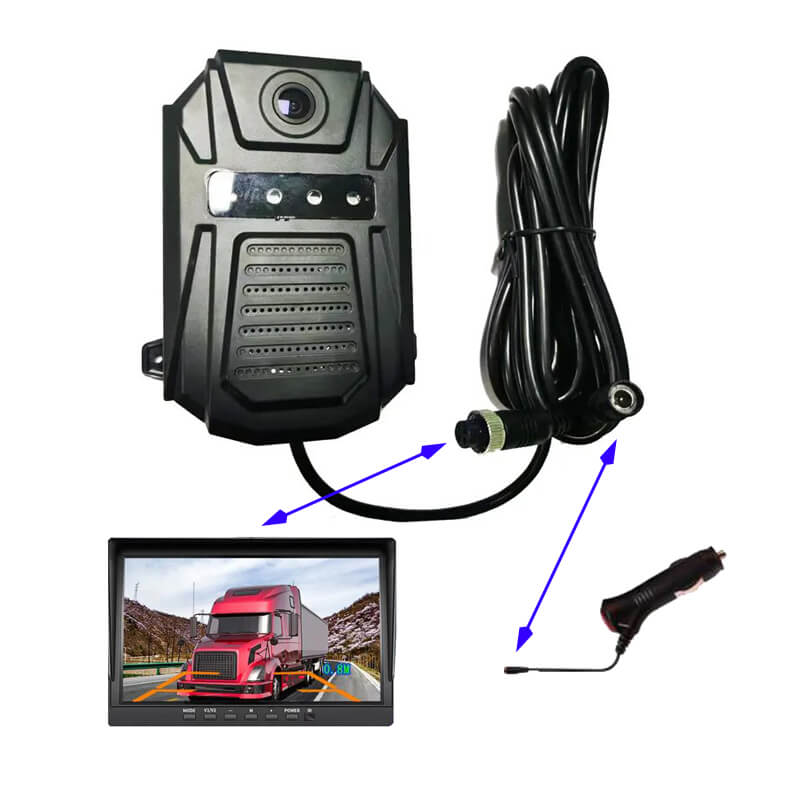

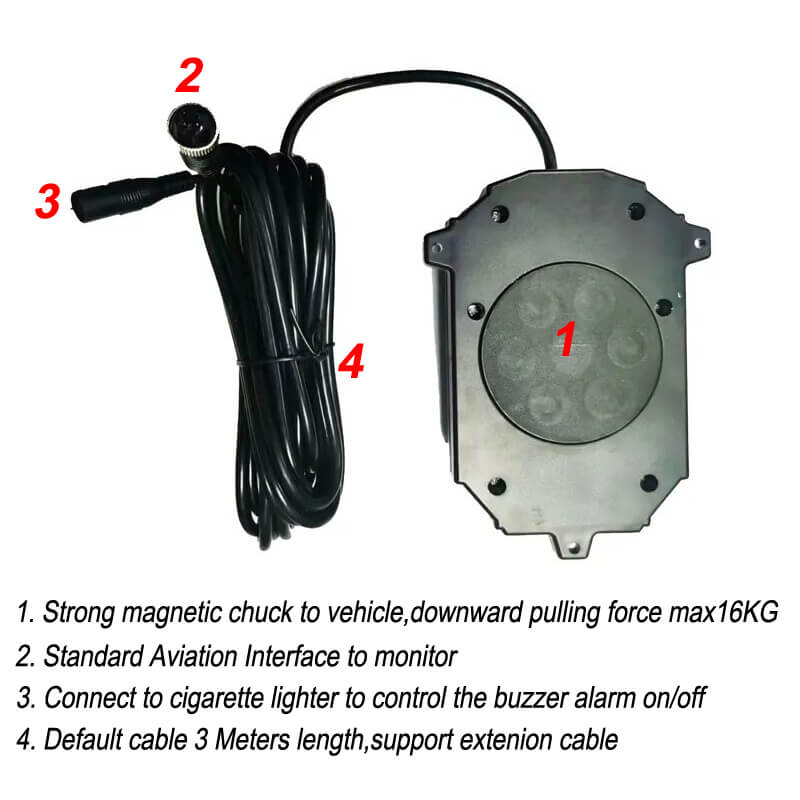

There are two output interface, one is standard aviation 4P which connect to monitor; The other output is to cigarette lighter.


How does this Buzzer Camera Parking Sensor Radar Work?

* Firstly we need to connect it to monitor in-vehicle well; For backup,side view or front position based on your demands;

* Secondly it's normal to view visional camera video in truck monitor;

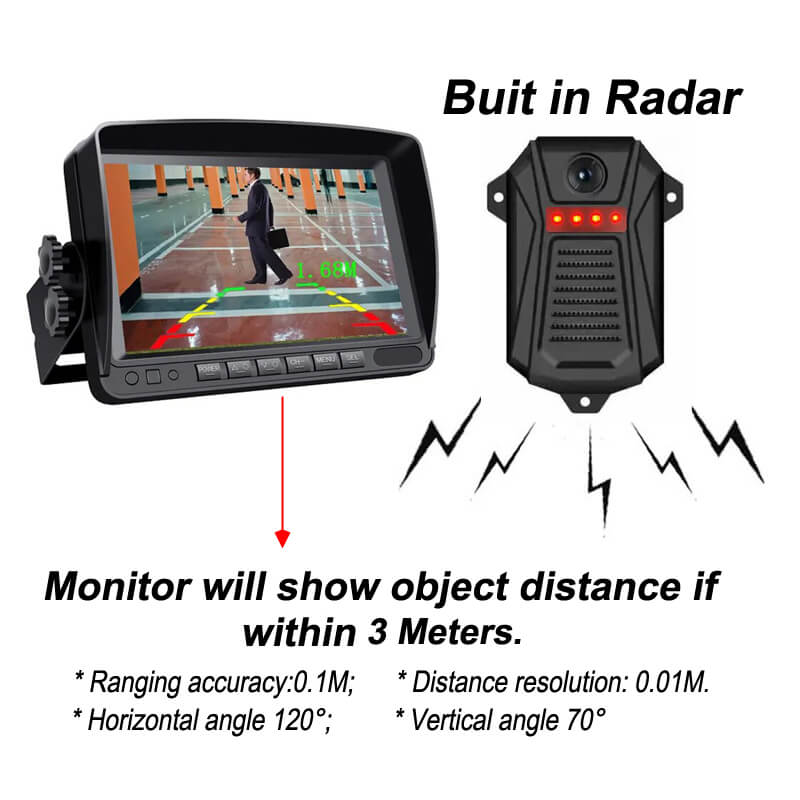

* When detect object,human being,vehicle etc within 3meters,the monitor will show the distance,meanwhile the sound and light buzzer will release to work which remind outside passenger, in-vehicle monitor audio will pre-alarm to remind driver keep an eye on the potental risk;

* When the vehicle moving 30Km/H or more at high speed road, the buzzer will not at work to avoid disturbing driver;

* When at night,quiet community,special time and environment which don't need big sound, the driver can cut off the "buzzer sound" via the cigarette light power.


How to name this item?

There are some description maybe suitable for you to understand more:


Vehicles Camera System with Radar Parking Sensor Buzzer

Parking Backup Camera Radar Reversing Sensors with Buzzer Alarm

Reverse Camera with Radar and Buzzer Sensors

Buzzer Camera Parking Sensor Radar

best backup camera with sensors and buzzer

backup camera with sensors and beater

backup camera with parking assist

reverse radar

parking sensor with camera

buzzer camera system

camera radar

camera radar detector

buzzer-beater

camera radar buzzer fusion

Backup Camera with proximity sensor

backup camera with beeper

Parking Sensor Backup Camera Combo with sound and light beeper

RV cam radar buzzer fusion


Can we make some customization?

Q1: The appearance look a little ugry, can we custom one new cover?

A1: Yeah surely. You can design your favorite apperance cover for us. Our engeneer will help you design the inner structure which meet our PCB board. And our team will evaluate it and follow up your demands soon.


Q2: Can we make it wireless kit for this "Camera Radar Buzzer Fusion" and "truck monitor"?

Q2: That is also customization service. Our technical support this feature customization. pls contact our sales team for more communication. List your demands lisk for us to evaluate.


Q3: Can we add salar panel and battery inside for it? We want them wireless kit with salar panel.

Q3: Good idea. We can support it as customization project. Email us info@duuhnn.com to talk more.
