4G Smart Dashcam Video Terminal

4G dashcam integrate with AI ADAS and DMS feature,support to connect extra 3ch camera(one driver monitoring camera,one for in-vehicle camera,one for blind spot ADAS camera).

  • Brand:

    DUUHNN
  • Item NO.:

    DH-RC34
  • Order(MOQ):

    1pcs
  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay
  • Price:

  • Warranty:

    2Years
  • Delivery Time:

    3-8 working days for sample

Product Overview


This product integrates positioning, 4G communication, video storage and transmission, and is a dedicated driving recorder for online car-hailing. It supports one channel of 1080P and three channels of 720P video recording storage, and it equipped with ADAS and DMS active security algorithms, which can realize remote real-time preview video and remote Historical video playback. Support seamless integration with customer’s platforms. It is widely used in taxis, online car-hailing, light truck and other nationally regulated industries.


Product Features

◆ Real-time location monitoring: Periodically reports location information such as longitude, latitude, and speed based on the preset return interval.

◆ 1 channel 1080P HD video and 3 channels 720P video real-time storage and upload

◆ Support 2 TF card Loop recording

◆ Support remote intercominitiated by the monitoring platform.

◆ Real-time video playback and historical video playback at the monitoring platform.

◆ Support 1-channel RS232 port.

◆ Support ADAS and DMS AI safety driving assistance functions.

ADAS: give voice warning for dangerous driving behaviors such as lane departure, close proximity and collision, and upload it to the platform for evidence collection

DMS: can effectively warn drivers of dangerous driving behaviors, such as fatigue, smoking, phone call, distraction, etc. by voice warning and uploading to the platform for evidence collection

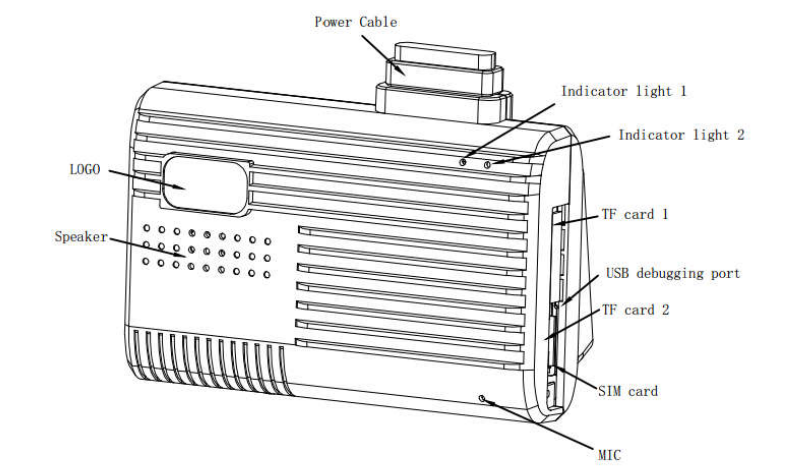

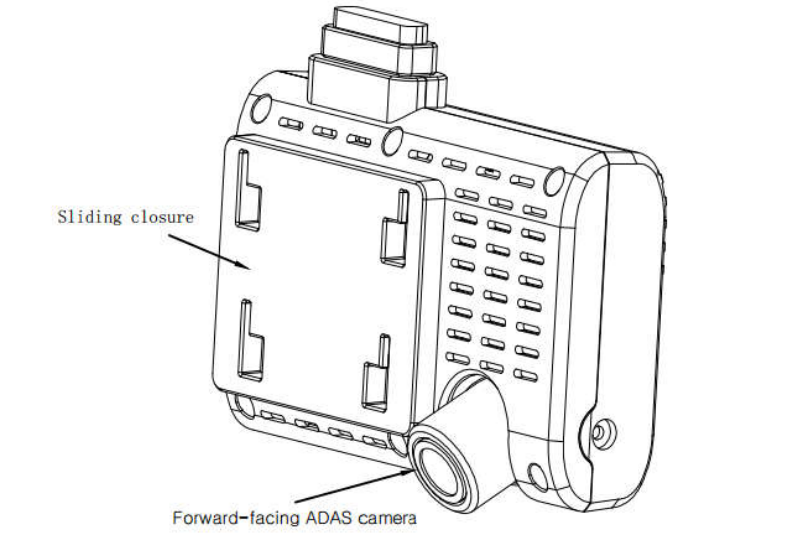

Appearance



Main Features

ItemFunction Description
Multimedia
function
Video modeLoop recording
Storage Support up to 2pcs 256GB high-speed TF cards
Capture  Remotely send command to capture
Time-lapse video saveACC off, time-lapse recording 5S
Remote intercomSupport remote intercominitiated by the monitoring platform.
Data uploadReal-time trackingUpload positioning information such as latitude and
longitude according to the set time interval
ACC On/Off statusLocation data packet contains the ACC status each time
Vehicle power off alarmTurn on the backup battery, when the device cannot detect
the vehicle voltage, it will report a power off alarm to server
Low voltage alarmWhen the device detects that the vehicle voltage is lower than
10V, it reports a low-voltage alarm to server
Over-speed alarmSet the maximum speed limit value through the platform or
SMS command. When the GNSS speed is more than the set
value, an over-speed alarm will be reported to the server
Blind area data uploadWhen the terminal is located and not online, the location data
will be stored in the device, up to 10,000 pieces. When the
signal is normal and the device goes online normally, the
stored location data will be automatically uploaded to server.
Inflection data uploadWhen the direction angle of the device changes more than a
certain angle, the device will immediately upload a position
data to optimize the trajectory.
Remote upgrade Support OTA remote upgrade



Technical Parameters

FeatureSpecification
Operation systemOperation systemLinux
HardwareMCU4 Cores A53
ROM 8GB
RAM1GB
Audio/videoAHD video input1 st –channel AHD 1080P(1290*1080)
Second, third, fourth channel AHD 720P(1280*720)
Audio input2-channel audio, PCM format
Audio output 1-channel audio, PCM format, inner speaker.
Video uploading formatMP4
Video encodeH.264
Audio encode G711A
Code rate Main code rate:1792Kbps; Subcode rate: 512Kbps
Real-time video recording4-channels
WIFIWIFIBuilt-in WIFI, 2.4GHz
Network 2G/3G/4GLTE FDD: B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM: 900/1800MHZ
Note: Different countries or regions need to
choose different communication modules due to
the differences of communication operators,
please ask sales for details.
Storage TF card Support two TF card ( single card max 256G)
Other featuresWorking voltageDC10V-36V
Working electricity420mA@12V(Not load);240mA@24V(Not load)
Sleeping power
consumption
6mA@12V
Working temperature -20℃~ +60℃
Storage temperature -30℃ ~ +80℃
Backup battery  3.7V 2000mAh
Device dimension L110mm*W70mm*H28mm
