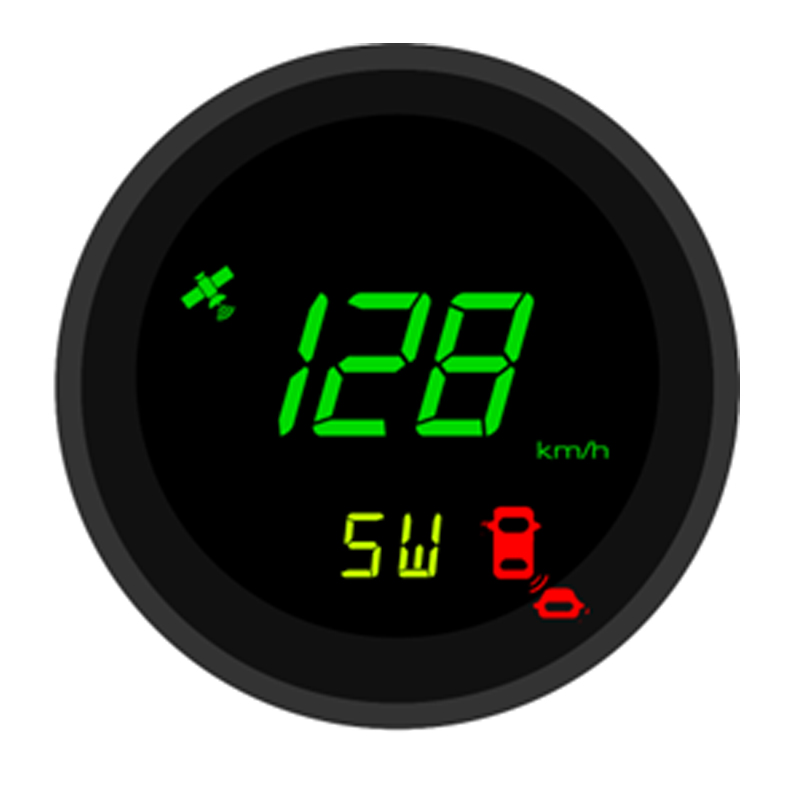

AI Dashcam ADAS Car HUD

Match with the AI dashcam, AI MDVR, AI monitor device which built in AI ADAS or AI BSD feature and show the ADAS/BSD behavior and warm driver timely.

  • Brand:

    DUUHNN
  • Item NO.:

    DH-CS02
  • Order(MOQ):

    1pcs
  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay
  • Price:

  • Warranty:

    1Years
  • Delivery Time:

    3-5 working days for sample

AI Dashcam ADAS Car HUD Introduction


Core Features

*  5~36V DC Wide Range Power Supply via Type C plug

*  Built-in Inertial GPS module & Antenna, keep accurate speed in tunnel & underground

*  RS232 two way communication GPS GNRMC data & ADAS Alarm Data

*  Fatigue Driving Alarm

*  Programmable Overspeed Alarm

*  ADAS Alarm (optional via AI ADAS Dashcam )

   FCWS (Forward Collision Warning System)

   LDWS (Lane Departure Warning System)

   HWS (Headway Warming System)

*  Blind Spot Alarm(optional via AI BSD Camera):

    Left BSD, Right BSD

*  Speed Range: 0~299, Unit: Km/h, MPH

*  Compass Show: N, S, W, E, NW, NE,SW,SE

*  Backlight: automatically adjusting via Light Sensor

*  Installation: 3M Adhesive Sticker


Cable Definition

RED:  Power +, 5~36V DC

BLACK:  Power Ground

YELLOW:  RS232_TX, output GNRMC, GNGGA, DEBUG Harsh Event Alarm(harsh acceleration,

                harsh braking, harsh turning,harsh lane departure, collsion, turnover)

WHITE:  RS232_RX, receive AI Dashcam/Mobile DVR ADAS, FCWS alarm, BSD Alarm


Package

CAR HUD ADAS GPS Speedometer x1

2.5meter type C Extension Cable x1

Cigarette Lighter to USB &Type C x1

OBD to Type C x1


Application

Match with the AI dashcam, AI MDVR, AI monitor device which built in AI ADAS or AI BSD feature and show the ADAS/BSD behavior and warm driver timely.
