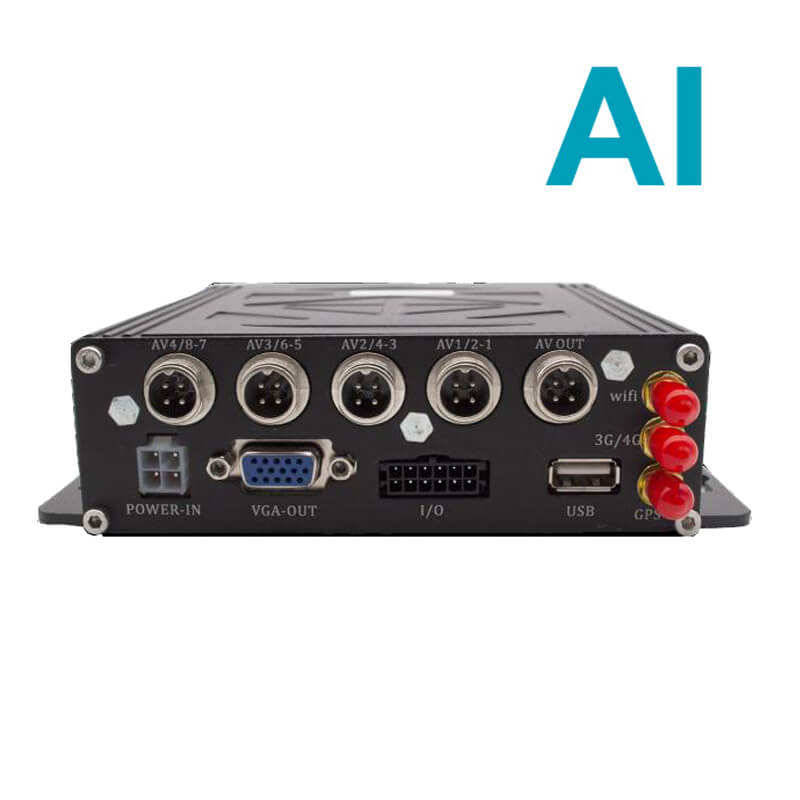

AI-Powered SD MDVR 4CH

AI-powered MDVR 4CH supports expansion of external ADAS+DMS AI features for fleet management video telematics solution provider.

  • Brand:

    DUUHNN
  • Item NO.:

    MDVR-AS04
  • Order(MOQ):

    1pcs
  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay
  • Price:

  • Warranty:

    2Years
  • Delivery Time:

    2-5 working days for sample

AI-powered 4CH MDVR AI feature ADAS and DMS is great for fleet video telematics solutions. Hardware, platform, API integrations maximize fleet efficiency, improve fleet safety and enhance fleet performance.


Main Features


* AI-powered accident prevention via ADAS such as LDW(lane departure warning) and FCW(forward collision warning)

* AI-powered driver wellbeing via DMS(driver monitoring system) to detect distracted driving,smoking,smartphone usage etc

* API integrations to your telematics software platform, increase visibility and GPS tracking real time

* Reliable 4G connectivity to match your local network operators

* Full range hardware fleet cameras specical private models, truck monitors, oil consumption sensor, alarm device optional


AI MDVR Specifications


ModelMDVR-AS04
Hardware solutionMasterHISILICON V352DV300
Running memorySamsung DDR 2G/4G
Power SupplyMPS
Audio and videoNVP6134C
Operating SystemEmbedded Linux
System languageChinese, English, others (optional to custom)
Video compression formatH264 Compression mode
OSD

Character superposition function, support time and date,

vehicle ID  and other information image superposition

GUIGraphical OSD interface

System parameters can be set via external display

 and remote control operation

Video SystemVideo input

4 channels 1080P AHD input, aviation head interface,

 1.0Vp-p, 75Ω

4 channels 1080N input
4 channels 720P input
Manual input 1-4 random input
Video output1 composite video output +VGA output, 1.0Vp-p, 75Ω, support 1 full screen and 4/9 split
Preview function

Single-channel, 4-screen splicing preview, support

manual/event  triggered full-screen display function

Video resolutionSupport 1080P, 720P, D1, HD1, CIF optional
Maximum support 4 channels 1080P or 720P
Video quality

0 to 7 level video can be configured, the best level 0

,the lowest level 7

Recording ratePAL: 100 frames/s, CCIR625 line, 50 fields
NTSC: 120 frames/s, CCIR525 line, 60 fields
CIF: 256Kbps ~ 1.5Mbps, multi-level picture quality optional
HD1: 600Kbps ~ 2.5Mbps, Multi-level picture quality optional
D1: 800Kbps ~ 3Mbps, Multi-level picture quality optional
720P: 1Mbps-4Mbps, Multi-level picture quality optional
1080P: 1Mbps~8Mbps, Multi-level picture quality optional
Recording method

Default automatic recording, support ignition recording,

manual recording, alarm recording, etc.

AudioAudio input4 channels, aviation head interface, external call handle input
Audio output1 way, front headphone jack output and rear extension
interface cable output
Compression formatG.726 compression format, rate 8KB/s
Alarm input4 digital inputs
Alarm Output

2-way switch output, linked audible and visual alarm

,oil and power off, etc.

Communication

interface (choose one)

1 RS232, expandable credit card machine, fuel sensor,
LED advertising screen, etc.
1 way 485 interface, expandable PTZ
Wireless transmissionSupport built-in 3G wireless transmission function, WCDMA, CDMA2000,
TD-SCDMA compatible GPRS, EDGE
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Positioning

Support built-in GPS / BD module, can report to the

department standard platform

Video Recordinghard disknot support
SD card

1 large-capacity SD card recording, maximum support 256G,

support simultaneous sub-stream recording, to ensure

data security

Upgrade method

Support U disk upgrade, SD card upgrade,FTP remote

 automatic upgrade

Storage methodExclusive proprietary bare disk storage method
USB

Front USB interface, you can use U disk to upgrade backup

data; hard disk box USB interface, you can backup video,

support USB mouse

Video playbackVideo searchSearch video data by recording time, recording method, etc.
ReplayMaximum support 4-channel synchronous playback, pause,fast forward, fast rewind
Support 2, 4, 8, 16 times fast forward or backward

Power supply and

power consumption

Power managementAdaptive wide-range power input, with protection functions

such as overload, undervoltage, short circuit,

reverse connection, etc.

Support timer switch, delay shutdown function
Input voltageDC:+10V ~ +36V
The output+12V@2A,+5V@1A
voltage
PowerNormal working state <5W (without peripherals)
consumption
Highlight featureSupports expansion of external ADAS+DMS
Support custom local APP WIFI hotspot function
Power-off delay recording (optional to custom)
Working environmenttemperature-20℃ to +70℃
humidity20% to 80%
Safety managementPassword access

Two-level management of user password and

 administrator password

OthersDB9VGA interface
sizeLength 153mm, width 135mm, height 42mm, hole pitch 36mm
net weight550g
