Car Side View Truck Fleet Vehicle Mirror Camera blindspot for semi truck,RV,bus,truck,fleet management,suit for aftermarket commercial vehicle safety system
Brand:
DUUHNNItem NO.:
DH-RC03Order(MOQ):
1pcsPayment:
TT, Paypal,Western Union,MoneyGram,AlipayPrice:
Warranty:
2YearsDelivery Time:
2-5 working days for sampleshare to:
Side View Truck Fleet Vehicle Camera DH-RC03
Main Features:
* Side view truck camera resolution 700TVL/AHD 720P 960P 1080P optional

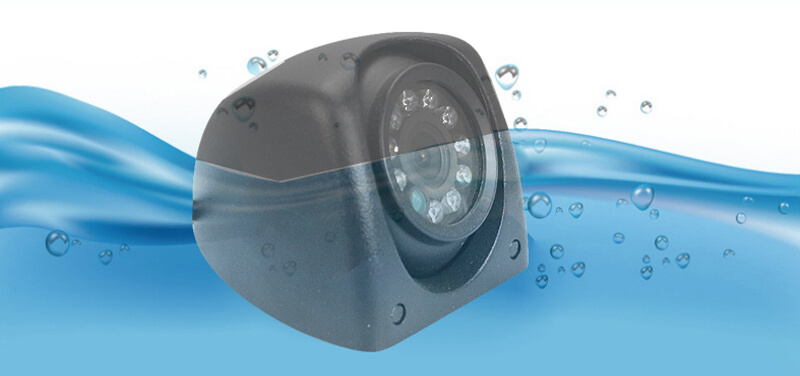

* Waterproof IP69K and shockproof for commercial semi truck trailer and RV vehicle
* Classic appearance easy installation for vehicle cameras system
Specifications:
Model | DH-RC03 | |
Camera | Sensor | 1/3 CMOS Sensor AHD |
TV System | NTSC/PAL | |
Night Version | 10pcs IR lamp with excellent night vision | |
Min IIIumination | 0.1Lux@(F1.2,AGC ON); | |
Electronic Shutter | Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s | |
Focus | 2.4mm | |
Lens Interface | M12 | |
F.O.V | 133° (D)、106°（H）、76°（V） | |
Backlight Compensation | Auto | |
Resolution | 700TVL/AHD 720P 960P 1080P optional | |
Signal to Noise ratio | Better than 48dB | |
Interface | Connect | 4 PinAviation Female Interface |
Video Output | 1Vp-p Composite Output(75Ω) | |
Audio Input | NONE | |
Audio Output | NONE | |
General | Material | Metal&Plastic |
Operating Temperature | -30℃~70℃ | |
Usage | For passenger vehicles | |
Operating Voltage | DC 9-36V±10%(or From Reversing Monitor DC12V) | |
Shockproof | Yes | |
Waterproof | IP69K | |

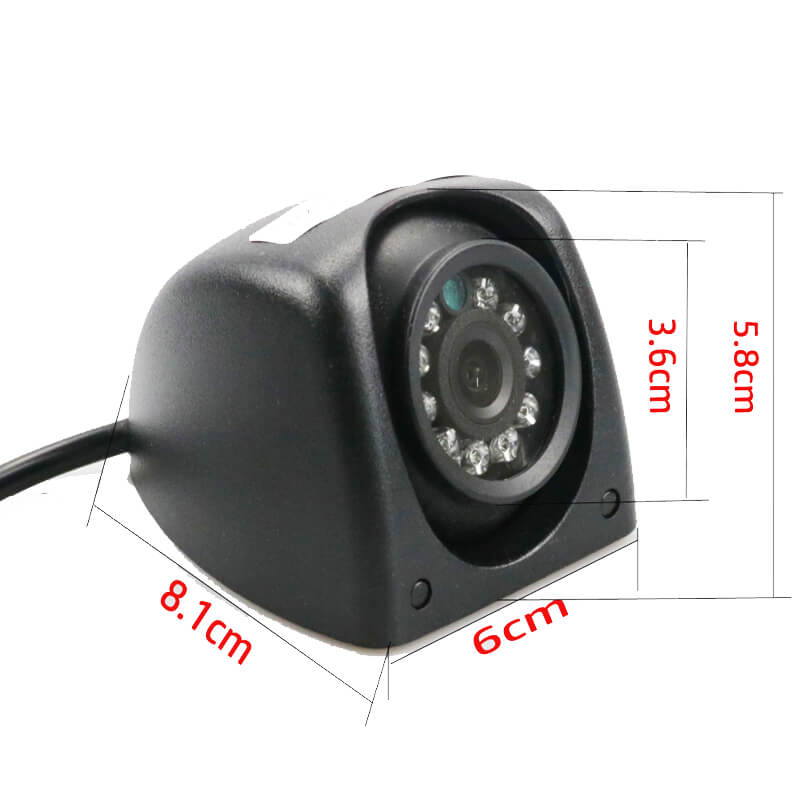

External Dimensions | 82.6*60.5*56.5mm(L*W*H) | |
