Features

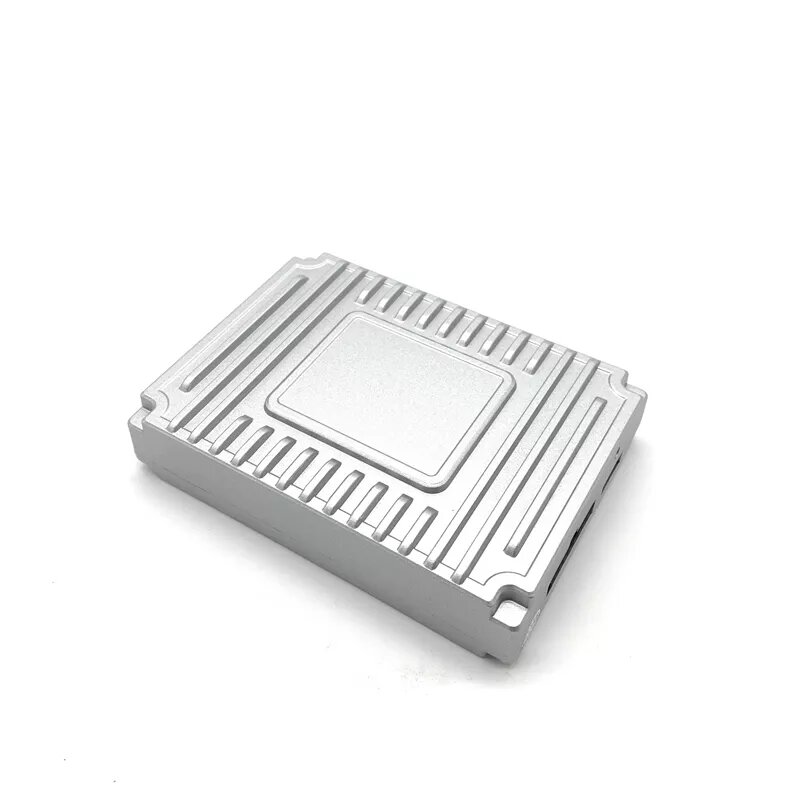

360 panoramic around view monitoring system

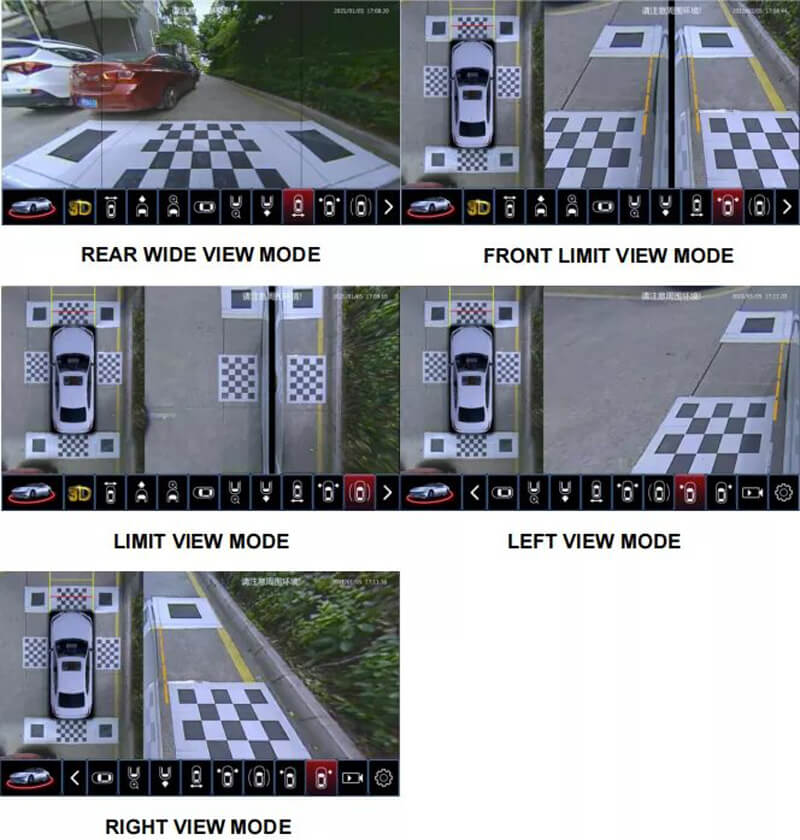

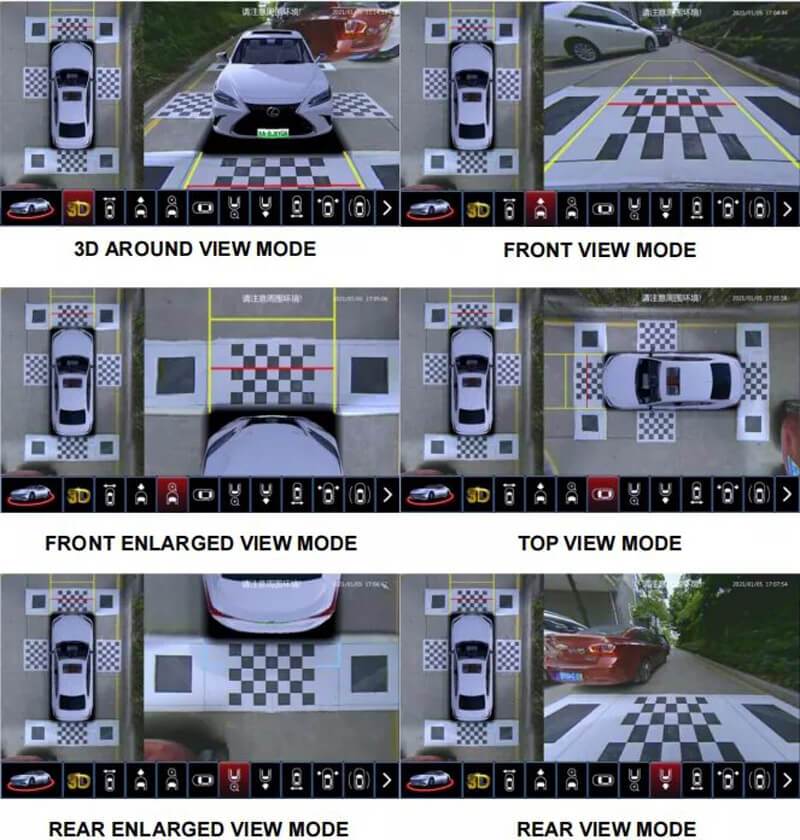

*Support 2D/3D view mode switch and front/rear/left/right /limit/front limit etc. view mode switch

*Device will look around for 3 times after start-up

*Support video output in AHD, CVBS, VGA and HDMI format

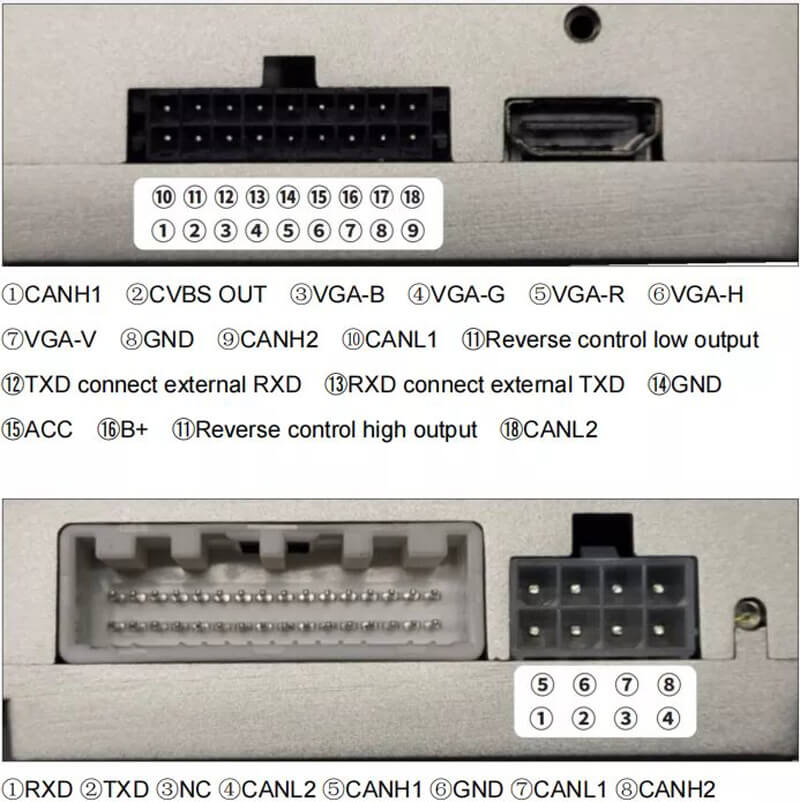

*Optional function supports the installation of built-in single and double CAN modules

*4 ways real-time driving video recording, video files saved in AHD format

*Support one-click calibration for a variety of cloth, and no manual marking is required, and there is no blind spot on the ground

* High-definition, wide-angle camera, as an auxiliary system for low-speed parking of vehicles, provides real-time images within the camera's field of view.

* Professional design of automotive electronics, with good environmental adaptability and working stability, the details are clearer in the darker environment, the picture is transparent, closer to the scene, and can excellently restore colors.

* The reversing image is clear and not deformed, and there is no color cast phenomenon. In a strong light environment, the strong light can be better suppressed, so that the subject will not be exposed and unclear.

* Waterproof IP67 ： Strictly implement industrial grade IP67 Waterproof/shockproof /anti-fog without worry，stable and durable

* Upgrade AHD chip ，Imported high-definition graphic sensor is adopted.Higher definition and finer images

Specification

Image sensor: 1/2.9“ CMOS(S226)

Video format: PAL

Photosensitive pixels: 1280 (H) x 720 (V)

Image resolution: AHD: 1 million pixels 720P

Frame rate: 1080P@25fps

Scanning system: 700lines, 25fields/sec

Synchronization method: Internal synchronization

Video signal: AHD

Exposure control: Auto

Gain control: Auto

Electronic shutter: (AES）AUTO /1/50-1/1000 000sec

White balance: Auto(2500K~9500K)

Minimum illumination: 0.01Lux@(F1.2,AGC ON)

Horizontal viewing angle: 200°

Vertical viewing angle: 130°

Image characteristics: positive without standard

Rated working voltage: 5V

Rated working current: 105mA

Operating voltage range: 4.8~5VDC

Working temperature: -20~+70℃

Storage temperature: -30~+75℃

Image quality guaranteed temperature: -20~+65 ℃

Environment temperature: 90%RH

Protection level: IP67 (Lens only)

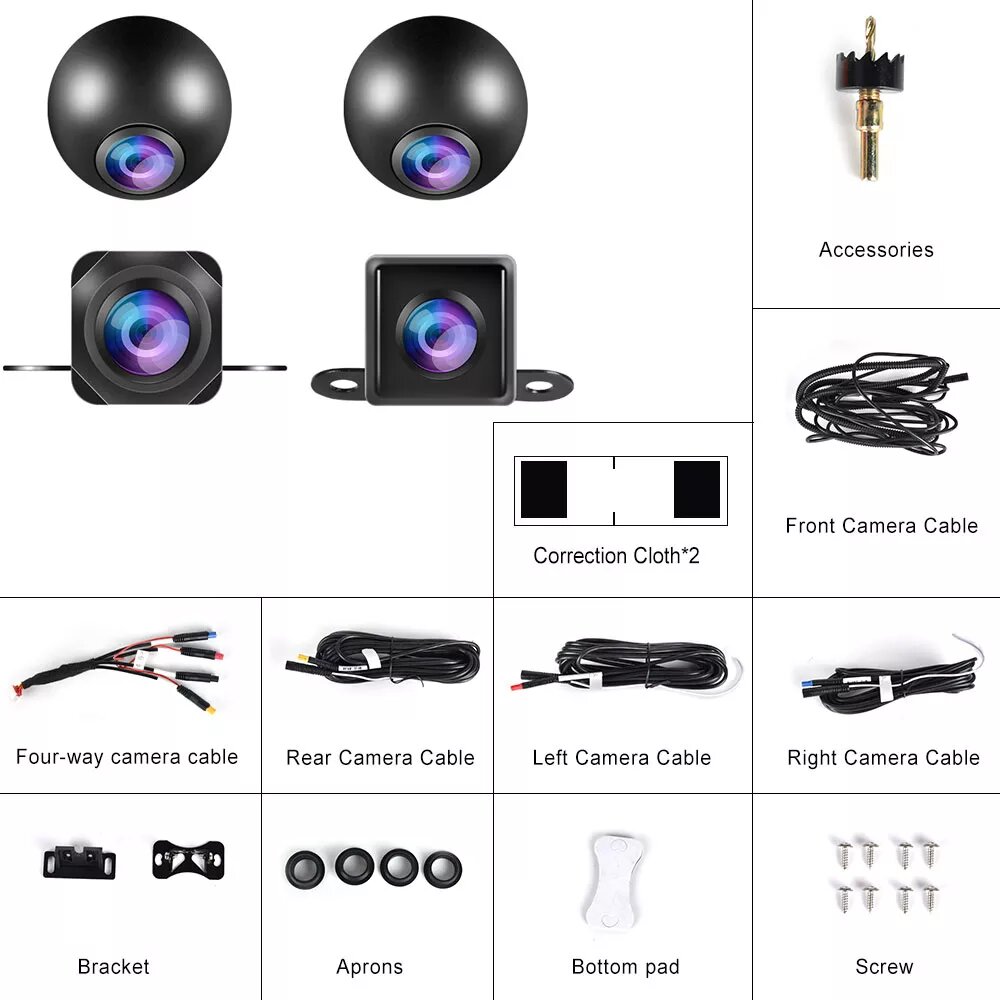

Package Included:

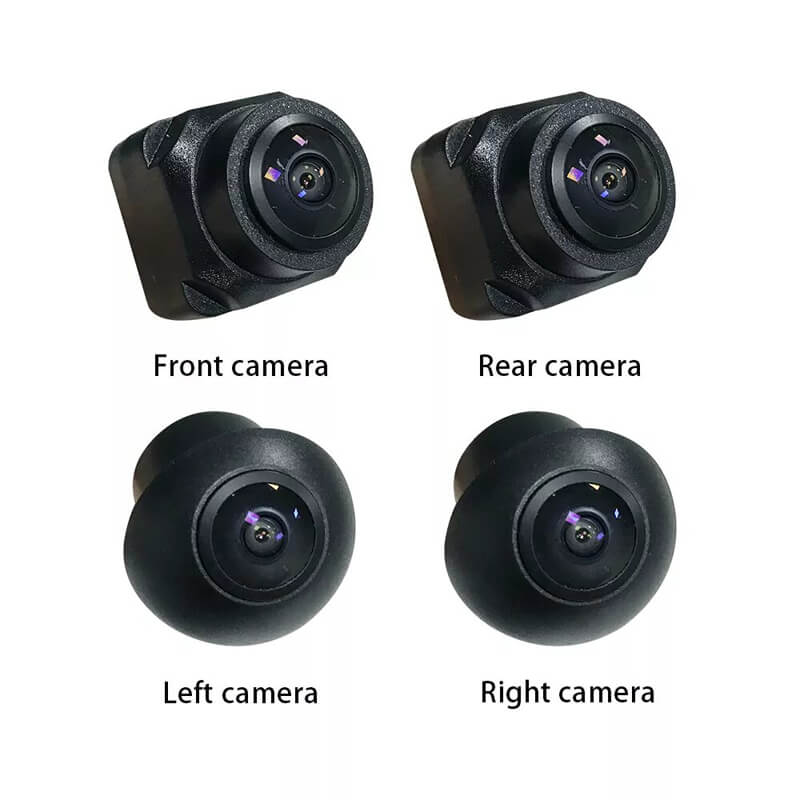

4 x Car Rear View Camera

1 x Accessories

1 x Front Camera Cable

2 x Correction Cloth(4pcs optional)

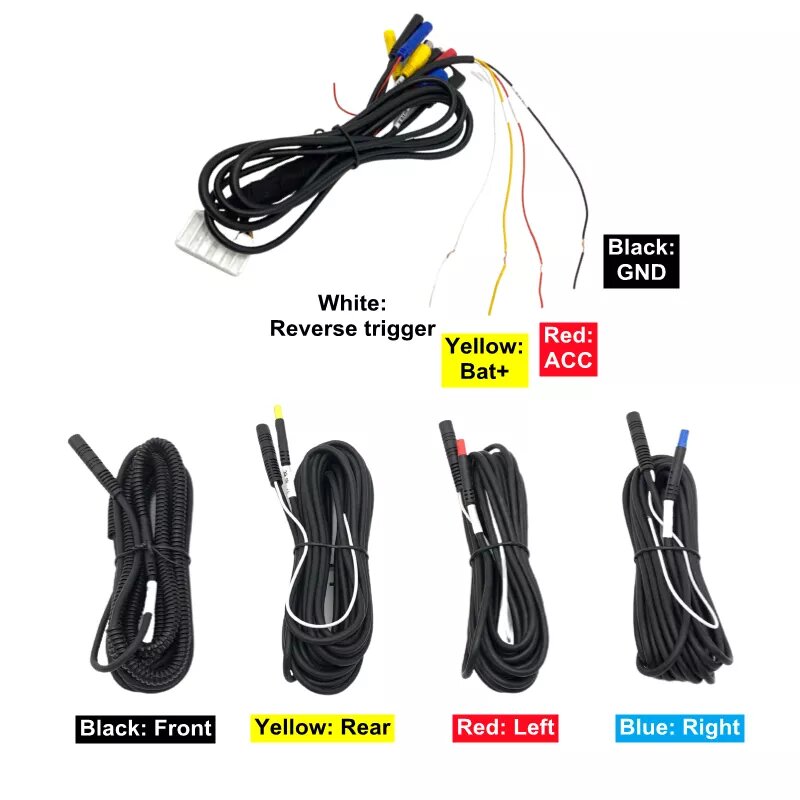

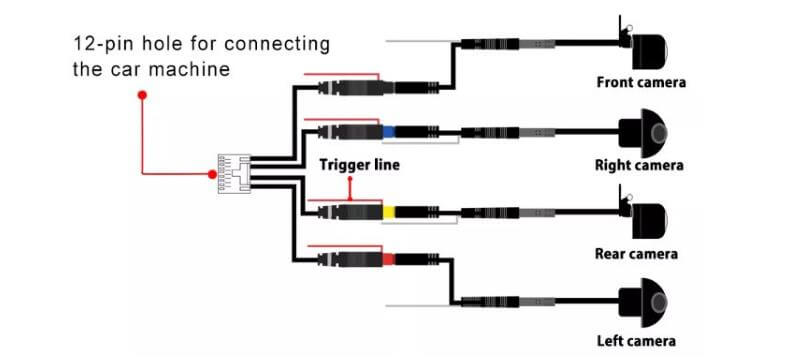

1 x Four-way camera cable

1 x Rear Camera Cable

1 x Left Camera Cable

1 x Right Camera Cable

2 x Bracket

4 x Aprons

1 x Bottom pad

8 x Screw

8 mounting screws
