How to connect Teltonika FMC125 RS485 to BLE100 protocol 16 L?

Here we mainly introduce the connection in short. More details pls refer manual(with more photos) and video "how to install FMB12t to BLE100?"

Step1:Download the mobile APP named “FuelGuard” in Google play(android phone) or iOS store(iPhone).

Step2: Mobile APP via BLE connection

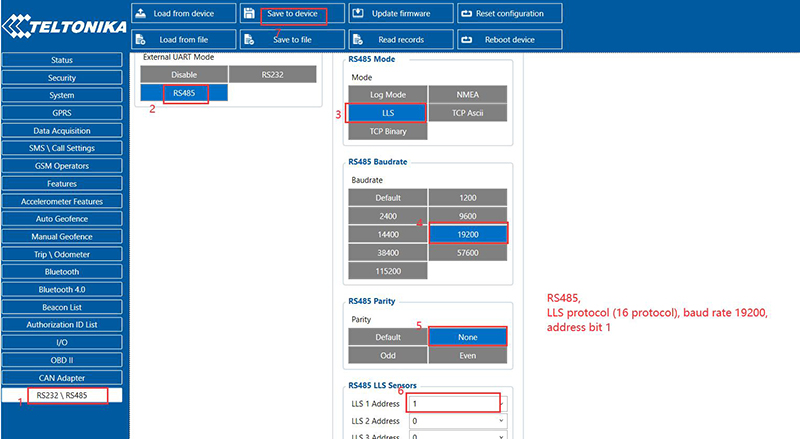

Step3: BLE100 must be RS485 ，setting: protocol 16, baud rate 19200, address bit 1

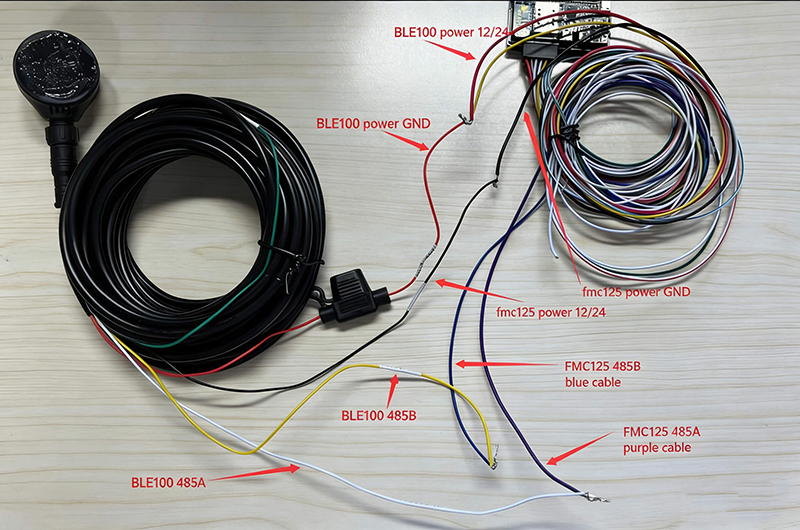

Step4:Teltonika FMC125 to BLE100 wiring connection

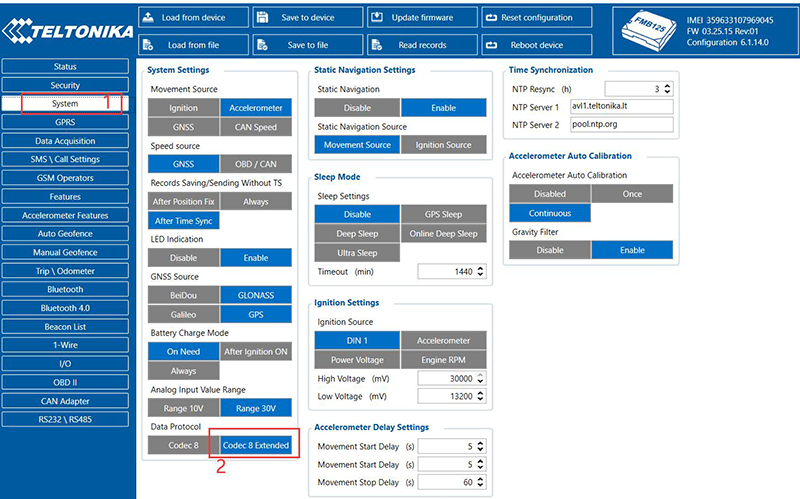

Step5: Teltonika FMC125 setting
