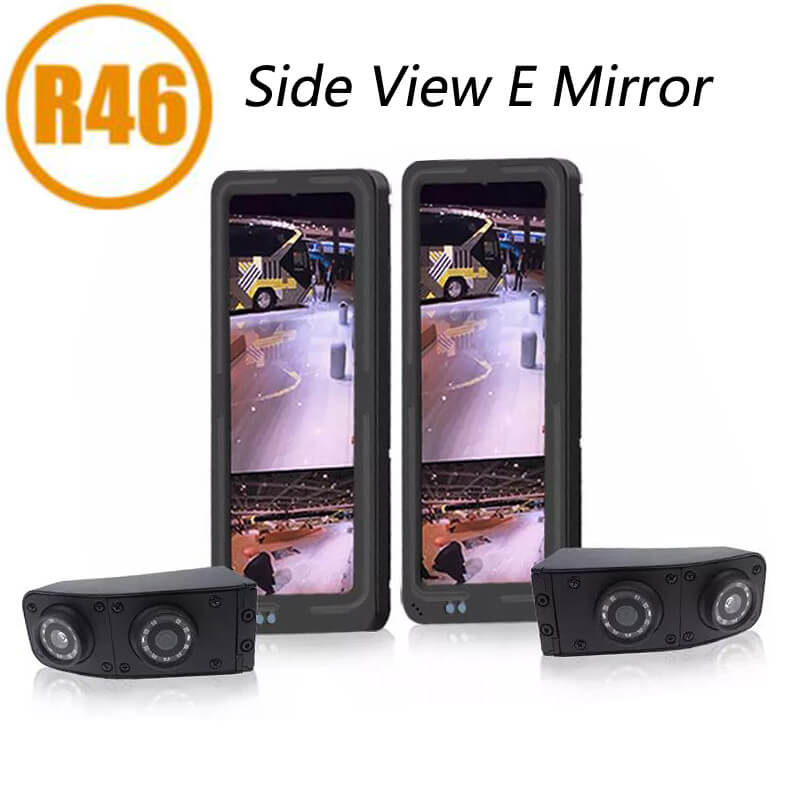

R46 12.3'' Mirror Camera System Digital Side View


R46 12.3'' Mirror Camera System Digital Side View

R46 12.3'' Mirror Camera System Digital Side View

Digital Side View 12.3'' Mirror Camera System approved R46 certification, suit for OE and aftermarket commercial heavy duty truck,bus mirror replacement.

  • Brand:

    DUUHNN

  • Item NO.:

    DH-EM01

  • Order(MOQ):

    1pcs

  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay

  • Price:

  • Warranty:

    2Years

  • Delivery Time:

    2-5 working days for sample
Inquiry now

Main Features


* 12.3'' side mirror camera system approved R46

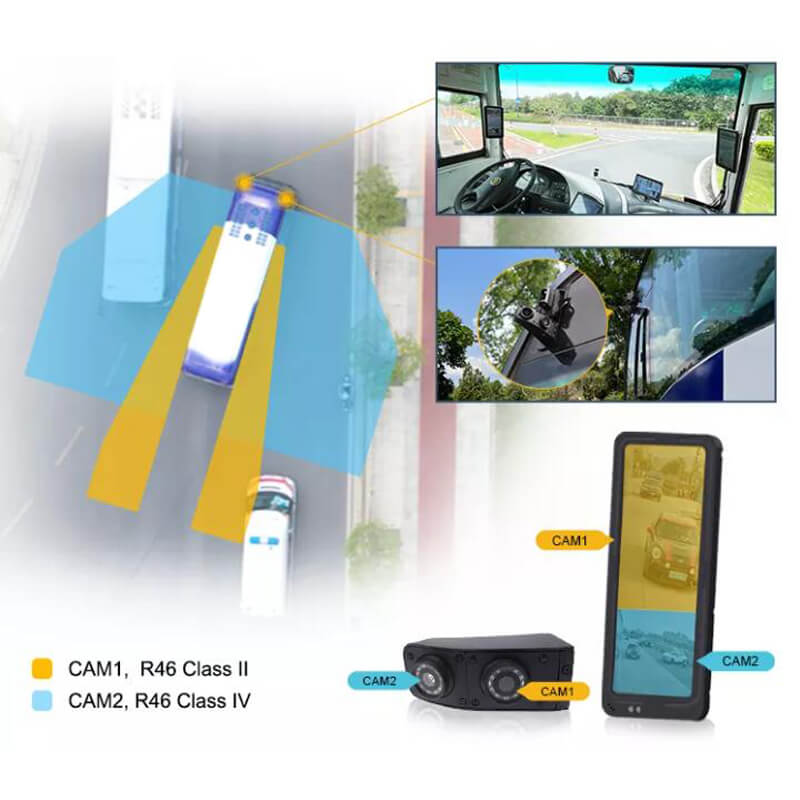

* Mirrorcam side View camera dual lens AHD 1080P waterproof IP69K

* Auto heating when low temp 5℃ or less when snowy,heavy rain,fog

* E mirror Hydrophilic coating to repel water droplets

* Digital side mirrors glare reduction to lower eye strain

* AI BSD(blind spot detection) system (opional)

* Side mirror with camera system storage SD card max 256Gb


side view camera mirror.jpg


Digital Electric Mirror Specification


Screen Size 12.3 inch (8:3) IPS
Resolution 1920 * 3 (RGB) * 720 Pixel
View Angle L: 85° / R: 85° / U: 85° / D:85°
Active Area 292.32 (H) * 109.62 (V) [mm]
TV System PAL&NTSC (Auto)
Brightness 750cd/m 2
Contrast 1000:01:00
Operation Method Remote Control
Language Simplified Chinese/ English
Power Supply DC10V-32V
Power Consumption MAX 25W
Working Temperature -40℃～75℃
Storage Temperature -40℃～75℃

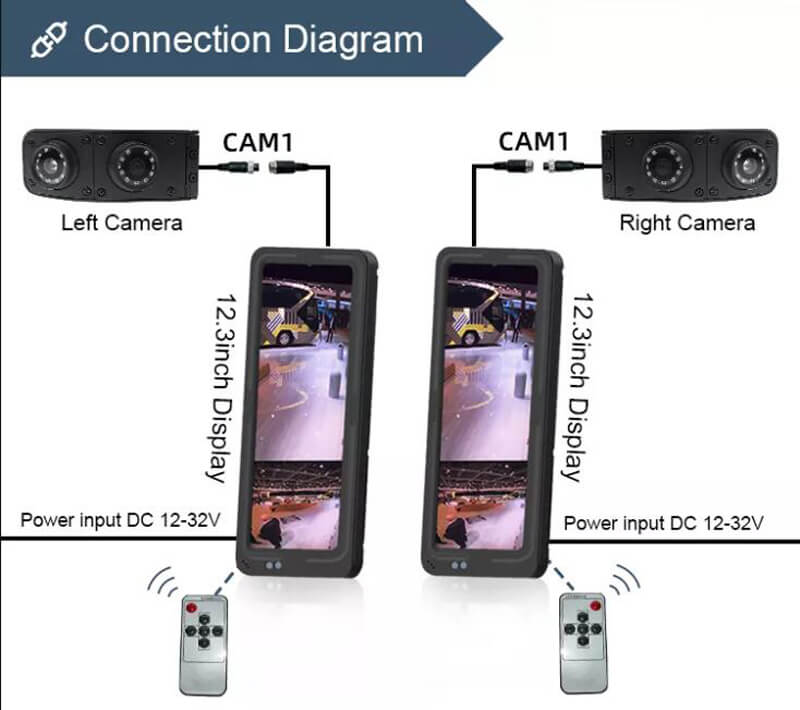

Signal Interface4pin Din Aviation Male Connector (1.+12V; 2. GND; 3. NC; 4. VIDEO)
Video Input 2ch Video Input (AHD 720P/1080P)
Outer Dimension 343mm*160mm*31.5mm（L*W*H）
Net Weight 1035g


Camera Specification


Model/TypeDH-EM01/side mirror camera system
Image Sensor1/2.8” IMX 3071/2.8” IMX 307
TV SystemPAL/NTSC (optional)PAL/NTSC (optional)
Picture Elements1920 (H) x 1080 (V)1920 (H) x 1080 (V)
Sensitivity0 Lux (IR LED On)0 Lux (IR LED On)
Scanning SystemProgressive scan RGB CMOSProgressive scan RGB CMOS
SynchronizationInternalInternal
Auto Gain Control (AGC)AutoAuto
Electronic ShutterAutoAuto
BLC AutoAuto
Infrared Spectrum850nm850nm
Infrared LED8 LEDs8 LEDs
Video Output1 Vp-p, 75Ω,AHD1 Vp-p, 75Ω,AHD
AudioN/AN/A
MirrorAvailableAvailable
ICRAvailableAvailable
Noise Reduction3D3D
Lensf2.5mm Megapixelf12.0mm Megapixel
Power Supply12V DC±10%12V DC±10%
Power Consumption230mA(Max)230mA(Max)
Dimensions 150 x 60 x 83.9 mm
Weatherproof/Water ProofIP69K
Operating Temperature-30° C ~ +70 ° C

digital side view mirror.jpg


R46 12.3'' Mirror Camera System Digital Side View welcome to OED ODM customization.
